TCPIP232 Client Server
The TCPIP232 Client Server Interface is designed to deliver POS / Cash Register Transaction Data to a compatible DVR over an existing Ethernet LAN connection with in several configurations and protocols. The Client Mode receives the POS data directly or via the AVE RS-485 Network and sends via LAN. The Server Mode can receive this data via the LAN and output RS-232 to the DVR for single POS or the VSI-ADD protocol.
| Product Brief || Manual || DVR Connections || Network Protocol |
The P2RS-Pro contains all the features of the
P2RS but also includes the AVE RS-485 Networking ability called the
RegCom or Vnetworker Protocol. This allows up to 16 units to
connected in daisy chain and deliver all the data to a compatible
DVR with a Hydra or VSI-Pro Max as the Master unit. The P2RS-Pro
also contains another special UART to handle special serial
protocols for non standard POS / Cash Register communications like
the Gilbarco Passport. Programming is done via any laptop running
any communications program and supports firmware updating as well.
Regcom is an interface device that allows the connection of multiple
cash register terminals to a master unit for the purpose of
transaction logging. The Regcom is a “slave” device and can connect
directly to a VSI-Pro, Interface Adapter, P2RS, TCP232 or ECR card.
One master device called the “Hydra” can be connected to a maximum
of 16 slave devices.
| Manual |
The Hydra is an interface device that
allows the connection of multiple cash
register terminals using the Regcom/Networker/Vnetworker slave units for the purpose of
transaction logging.The Hydra receives RS-485 data from the Regcom/Networker/ Vnetworker
networks and converts this to an RS-232 format that DVRs or the VSI-Pro can read.
| Manual |

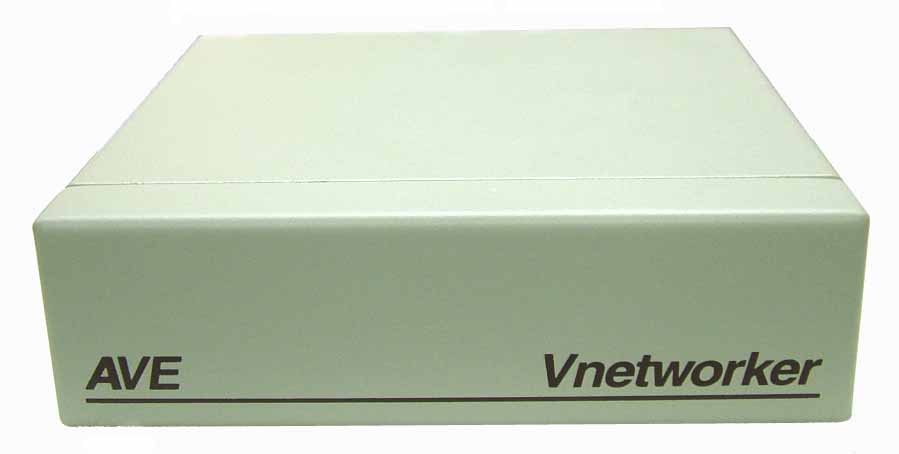

The Vnetworker connects inbetween a VSI-Pro and
the Cash Register via RS-232. The Vnetworker is similar to the
Networker and Regcom which take the RS-232 data and put it on a
common RS-485 network and send back to a DVR or PC. This network
supports up to 64 Vnetworkers. The Vnetworker is an enhanced version
of the Networker and is able to program the VSI-Pro remotely along
with gathering the transaction or exception data. The VSI-Pro must
be Ver. 13.00 or 13.24 and Release 12 or higher. Any VSI-Pro Ver.
13.00 or 13.24 can be upgraded with a uP software change for the
hardware of the VSI-Pro remains the same.
| Manual |
The RS-485 Networker is designed to convert the
RS-232 serial port output of the VSI-Pro to
be a poll / select network. This allows the exceptions
or all the data to be collected by one computer
or DVR for up to 64 VSI-Pros.
| Manual |Software |
