VIDEO MOTION DETECTORS

Reliable and cost-effective, these units are widely used to secure indoor areas. Their compact size, low voltage requirements, and simple on-screen programming menus make them excellent for covert applications. Single, Four and 16 Channel Rack Units.

| VMD 1001 | | VMD 1004 | | DS-1PL | | DS-16 | | DS-20-OF |

DS LAN for DS1-PL/DS-16

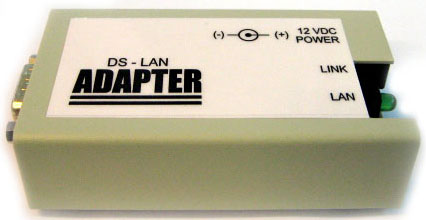

The DS-LAN allows connection of either the DS1-PL or DS16 rack to any Ethernet LAN using Cat 5 cabling. In conjunction with our DSVMD sofware and included cables the connection is seemless. User programming of the adapter IP is done via any laptop via the serial port. Once programmed it is stored in nonvolatile memory permanently.

| Manual| DSVMD Software | | Cutsheet |



DS1-PL Relay Adapter

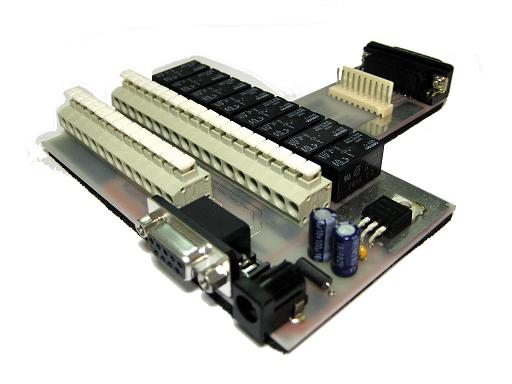

This adapter is a breakout of the DB15 connector on the rear of the DS1-PL to give a Form C relay output for the 8 individual zones of the DS1-PL via push terminals. A header connector is also provided for Open Collector TTL outputs. 12VDC must be supplied to the adapter board via the 2.1mmx5.5mm DC Coax connector similar to what is used on the DS1-PL and is output via a push terminal also. A DB-9 is also provided to give the standard RS-232 communication, and additional push terminals for the Alarm input and Global Form C relay outputs.

| Manual



9 and 16 Camera Video Motion Detector

9 or 16 Channel MultiDisplay Video Motion Detector with One Digital and 2 Analog Monitor Outputs. Integrated 16X3 Mini Matrix Switching and multiscreen display gives this device display versatility. Independent camera masking areas, sensitivity and target size for Indoor or Fixed Lighting Outdoor Motion Detection applications. One common alarm output but when used in conjuntion with the AL-16 will give 16 independent camera alarm outputs. Full remote programming software included.

| MS-9 | | MS-16 | | MTIUDL Software |



Remote Keyboard

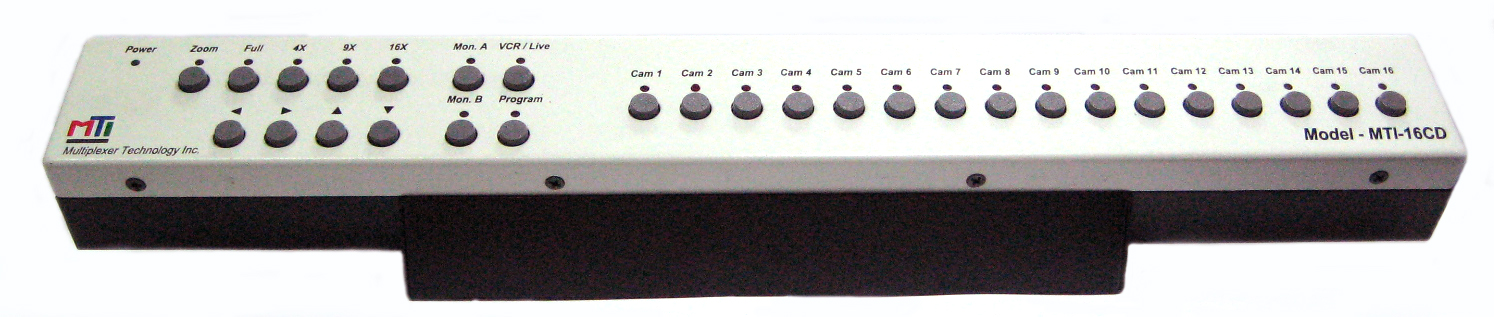

Remote Keyboard the MTI-16CD-VMD 16 Channel Video Motion Detector. Operates via the RS-232 port on the rear of the unit and functions in parallel with the front panel keyboard. Power is supplied by the VMD in the DB9 Connector or 12VDC external power source directly to the keyboard.



AL-16

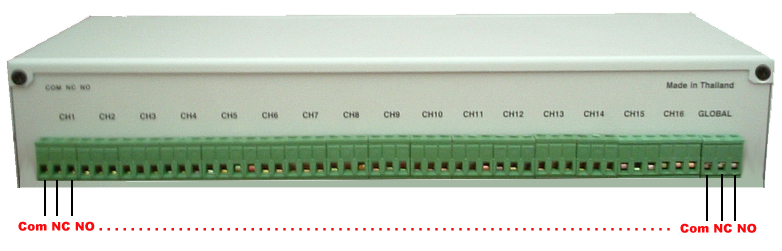

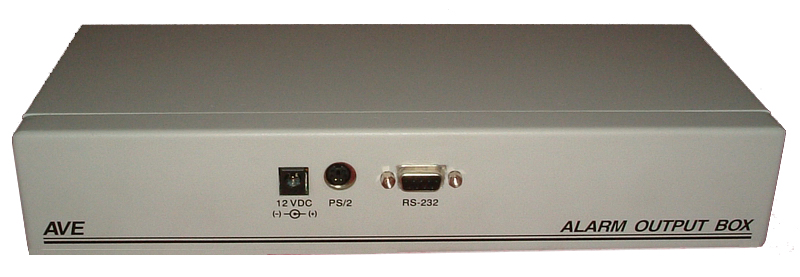

The Alarm Box provides individual alarm outputs from a Multiplexer.  One can set addresses on the Alarm Box for 256 addresses (0-255) on the Multiplexer.  The Alarm Box has a master alarm output that is active when any of the other channels are active.

| Manual |

DS-20-OF VMD1001, DS-20-OF VMD1004, DS-20-OF Rack Generic

Using the PCB only version you can add 16 cards in this convenient Standard 19 4 U Rack Frame. Includes rear daisy chain wiring for 12VDC power supply with common screw terminal connector and magnetic latching front door to access programming buttons.
