The VMD1004 is a 4 camera video switcher that has VMD (Video Motion Detection) on each camera. OSD (on-screen) programming for switching dwell time, bypassing and motion dwell time along with the VMD setups is done via the 4 front panel pushbuttons.

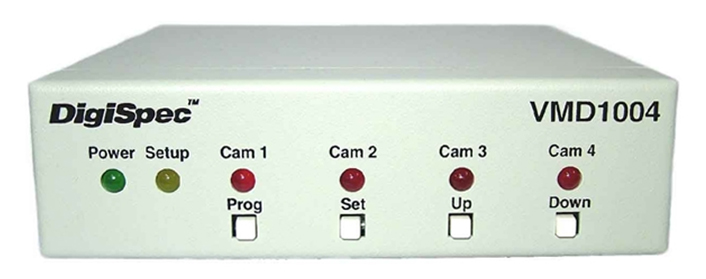

FRONT PANEL

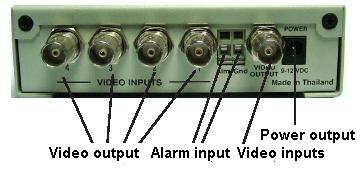

BACK PANEL

Download the VMD-1004 Operation Manual in PDF Format
You will need Acrobat Reader to view this file.Use the link below to obtain the correct version for your machine.
Get Acrobat Reader
Now Purchase VMD Online with a Special Web Discount

 STANDARD FEATURES

- Compact Size.

- On-Screen Programming.

- 4 Pushbuttons on front panel for programming and homing

- 4 Red LEDS for signifying which camera is presently output

- All program setups stored in non volatile EEPROM memory

Switcher

-Independent dwell times for all 4 cameras 1-30sec

-Bypass selection for camera manually or by video loss

-Manual homing via front panel pushbuttons

VMD

- Independent motion dwell times for all 4 cameras 1-30sec

- Independently  Selectable zones

- 99 Levels of Sensitivity.

- Independently  Selectable Sensitivity.

 - Enable / Disable VMD for any camera input



 SPECIFICATIONS
Video Input: 4 BNC 1V p-p, 75ohm term.

Video Output: 1 BNC Video Output 1V P-P terminated or un-terminated

Video Standards: NTSC/ PAL Jumper Selectable.

Pixel Resolution: 288 horizontal by 216 vertical.

Power Supply: 12 to 24 V DC @ 150mA max.

Alarm Output: Open Collector Transistor Normally Open  12VDC @ 20mA Max.

Size: 4.5"(D) x 3.5"(W) x 1-1/8"(H)116mm (D) x 88mm (W) x 30mm (H)  5Wx5Wx1.5H

Weight:   25 oz. / .7 Kg

Color: Computer Beige Metal Case.

Warranty: 2 year, parts and labor.
