DCQ-2000      Digital Color Quad Processor    "True Real Time"
The new DCQ-2000 Digital Color Quad Processor offers a high resolution quad split display of any four color cameras. The dedicated VCR In/Out connectors allow for high quality VCR Playback and an advanced interpolated Zoom function. Finally a Quad Zoom mode that delivers a clear and quality image. One monitor output allows for true real time live display or VCR playback all from the simple front panel controls. On-screen programming allows for Time/Date display, independent quad adjustment to compensate for different cameras and all programming setups. Alarming capability and 12VDC operation allows the DCQ-200 to be used for any application.

Download the DCQ-2000 Operation Manual in PDF Format
You will need Acrobat Reader to view this file.Use the link below to obtain the correct version for your machine.
Get Acrobat Reader

View the DCQ-2000 Cutsheet
Features
  • True Digital Color Video Quad
  • CCIR-601 Digital Standard NTSC/PAL
  • True Real Time (50 ips PAL / 60 ips NTSC)
  • VCR Input and Output with Playback
  • High Quality Interpolated 2X Zoom
  • Alarming Inputs per Camera
  • NO or NC Programmable
  • Alarm Output Relay
  • NO & NC Contacts with Common
  • Audible Buzzer Alarm
  • 99 Alarm Event Log Memory
  • VCR Record & Playback
  • Independent Picture Controls for each Camera
  • Brightness / Contrast / Tint / Color
  • 12VDC Power Input
  • Compact Metal Case
  • Video Loss Detection
  • 6 Character Camera Title
  • Time & Date On Screen
  • Multi Format Date
  • 12/24 Hr Time Format
  • Internal Clock backup in case of power outages
  • Non Volatile Memory for Program Setups
  • On-Screen Programming

Specifications

Video Standard CCIR601 NTSC/PAL

Sampling Rate

 910 x 525 pixels per line for NTSC
1135 x 625 pixels per line for PAL

Total Display Pixels

 858 x 512 pixels for NTSC
864 x 576 pixels for PAL
Display Rate 60 fps NTSC - 50 fps PAL

Quad Update Rate

 60 fps NTSC - 50 fps PAL

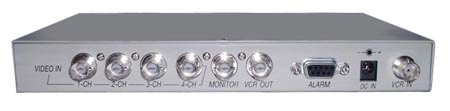

Camera Inputs (BNC) Composite Video 1 V P-P 75 ohm terminated
VCR Input (BNC) Composite Video 1 V P-P 75 ohm terminated
VCR Output (BNC) Composite Video 1 V P-P into 75 ohm terminated load
Monitor Output (BNC) Composite Video 1 V P-P into 75 ohm terminated load
Alarm Input (DB-9 F) Hi-Z Impedance, NO or NC programmable. 1 per camera

Alarm Output (DB-9 F)

 Relay Form C Contact NO / NC / Common
AC 120V @ 1A -AC 240V @ .5A- DC 30V @ 1A
Operation Temperature 5 degrees to 45 degrees Celsius
Relative Humdity 5% to 85% Non-Condensing
Weight 1 lb. 14.5 oz
Size 8 5/8"D x 6 1/4"W x 1"H
Power (DC Coax) 12VDC @800mA 2.1mm x 5.5mm, Center Positive

Programming BackUp

 Super Capacifor 7 days for T/D
EEProm for setups 10 years

Included Accessories

 120VAC to 12VDC @ 800mA Adapter
Operation Manual
