The “i-Checked”
HELP YOUR CASHIER PROVE THE I.D. HE OR SHE CHECKED WAS ORIGINAL!!
Forces Cashier to follow beer I.D. procedure

You’re at risk whenever your employees neglect to check for proper Identification. Make sure you have AVE’s “i-Checked System”

Typical “i-Checked” Display

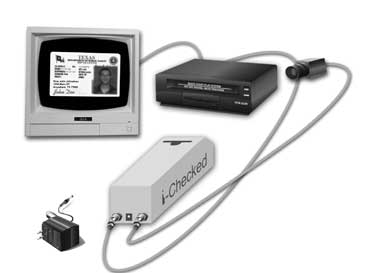

The Simple Hook-Up of the “i-Checked System”

Selling liquor or tobacco to minors unknowingly? Selling controlled/prescription substances over the counter? Purchasing or selling firearms to and from the general public? Is your business or store exposed to a potential liability in not determining proper identification? AVE would like to introduce you to the device you need, The “i-Checked” System. Utilizing the latest technology, the “i-Checked System” can aide you in an I.D. situation. The system will aide in the prevention or potential liquor, tobacco, and firearm sale violations, thereby lowering business liability in such cases. The system records a customer’s I.D. on videotape, helping to insure that employees are fulfilling their responsibility in checking a customer’s date of birth. For example, if later you are confronted with an allegation that your business or store sold liquor to a minor, merely play back the videotape showing the presented I.D. The liability protection regarding fake I.D.’s will prove the viability of the “i-Checked System” from AVE.

Download the Installation Manual in PDF Format

View the i-Checked Cutsheet

The “i-Checked System” Features:
  • Use to record I.D.’s at Checkouts (Sale of Liquor and Cigarettes) and at Pharmacies (Sale of Controlled Substances), Etc.
  • Works with most Camera Systems n Video Tape Records: Drivers License, I.D.’s, Etc.
  • System Includes:
      • 1/3” CCD Imaging Camera (B/W)
      • (420 lines of Resolution - .05 Lux - IR Illumination)
      • 12 VDC Power Supply
      • Adjustable Record Time
  • Record time can be adjusted from “instantaneous” thru 21 Seconds
  • Dimensions: 3”W x 3.5”H x 9”L
  • Weight: 2.1 lbs. n Power Draw: 500 ma Max
  • Video Input: 1 VP-P 75 Ohm. Terminated
  • Video Output: 1VP-P 75 Ohm. Terminated

“Pin Hole”Camera Features:

  • Lens: 3.6mm or 4.3mm (92 or 78 Deg) F 2.0
  • Image Pick-Up Device: Interline Transfer CCD 1/3” Format
  • TV System: EIA, CCIR
  • No. of Pixels: EIA= 510(H) x 492(V) x CCIR= 500(H) x 582(V)
  • Scanning System: 2:1 Interlaced
  • Sync System: Internal Sync
  • Resolution: 420 TV Line
  • Usable Illumination: 0.1 Lux (F 1.2)
  • S/N Ratio: More than 64 dB
  • Gamma Shutter Time: 0.45
  • Video Output: 1.0 Vp-p 75 ohm
  • Electronic Shutter Time: EIA= 1/60 - 1/100,000 Sec. CCIR= 1/50 - 1/100,000 Sec.
  • Power: 12 VDC
  • Audio S/N Ratio: More than 35db
  • Audio Output Level: 1V P-P 600 Ohm.
  • Audio Frequency Range: 20Hz to 20KHz
